ה- TAPPI T826 test method is widely used for evaluating the short span compressive strength of paper and board materials, especially those used in container and box manufacturing. The test provides valuable information about the intrinsic compression performance of paper fibers by measuring the maximum compressive force a small test span can withstand before failure. For laboratories, packaging manufacturers, and quality control teams, TAPPI T826 short span compression testing offers an effective way to assess material strength, optimize board design, and improve packaging reliability.

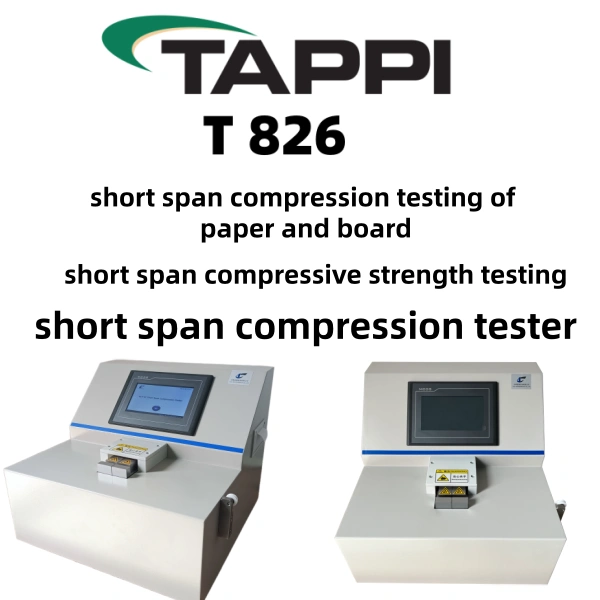

ה- SCT-01 – מכשיר לבדיקת דחיסה בטווח קצר from Cell Instruments is designed for accurate בדיקת חוזק לדחיסה בטווח קצר של נייר וקרטון in both machine direction (MD) and cross direction (CD). The instrument applies controlled compression to a precisely prepared test specimen and measures the maximum force required to cause compressive failure. It is suitable for paper and board materials with grammage ranging from 100 g/m² to 400 g/m², making it an ideal solution for packaging material development and production quality inspection.
What Is TAPPI T826 Short Span Compression Testing?
TAPPI T826 describes a test method for determining the compressive strength of paper and board over a short unsupported span. Unlike conventional compression tests that evaluate complete packaging structures, short span compression focuses on the compression resistance of the paper or board itself.
Paper-based packaging materials depend heavily on fiber strength to maintain structural performance. During manufacturing, transportation, stacking, and storage, corrugated boxes and paper containers experience compression forces from multiple directions. Measuring short span compressive strength helps engineers understand the material’s ability to resist these forces before designing final packaging structures.
The test evaluates the material’s inherent fiber network strength by minimizing the influence of buckling. Because the test span is extremely short, the measured compression force reflects the paper structure rather than the overall geometry of the specimen.
מדוע בדיקת חוזק הדחיסה בטווח קצר היא חשובה?
Paper and board compression performance directly affects packaging durability. A material with insufficient compressive strength may lead to:
- Reduced stacking performance during transportation
- Premature box deformation
- Lower protection for packaged products
- Increased packaging failure risks
- Unstable production quality
For packaging engineers, בדיקת חוזק לדחיסה בטווח קצר של נייר וקרטון provides important material data before converting paper into cartons, corrugated structures, or other packaging products.
The test is especially useful when comparing:
- Different paper grades
- Fiber compositions
- תהליכי ייצור
- Raw material suppliers
- Surface treatment methods
By obtaining reliable compression strength values, manufacturers can select suitable materials while reducing excessive material usage and maintaining packaging performance.
Testing Principle of TAPPI T826 Method
The basic principle of TAPPI T826 short span compression testing is to compress a narrow paper or board specimen between two precisely aligned clamps until the sample fails.
The SCT-01 Short Span Compression Tester uses a 15 mm wide test piece held securely between two compression jaws. The clamps maintain a fixed test span of 0.70 mm, creating a controlled compression condition.
במהלך הבדיקות:
- A prepared specimen is placed between the upper and lower clamping jaws.
- The pneumatic clamps apply a consistent holding force to secure the sample.
- The compression mechanism moves the clamps together at a controlled speed.
- The instrument records the maximum compression force before failure.
- The measured value represents the compressive strength of the paper or board sample.
This testing method does not determine strain at break. Instead, it focuses on the maximum compressive force that the material can withstand under short-span conditions.
How Is Short Span Compression Testing Performed?
אמין short span compression test requires accurate specimen preparation and controlled testing conditions.
Typical testing steps include:
הכנת הדגימה
A paper or board specimen is prepared according to the required dimensions:
- Width: 15 mm
- Length: 75 mm
Samples are normally tested in both machine direction and cross direction because paper fiber orientation influences compression performance.
Sample Clamping
The SCT-01 uses specially designed compression clamps with high-friction contact surfaces. Each clamp includes stationary and movable jaws with a 30 mm clamping length.
The clamping system applies a constant force of:
2300 ± 500 N
This ensures the specimen remains securely positioned during compression and prevents sample slipping.
מדידת דחיסה
The instrument compresses the specimen at a controlled test speed:
3 ± 0.1 מ"מ/דקה
The maximum force recorded before failure represents the short span compressive strength of the sample.
תכונות מכשיר בדיקת דחיסה לטווח קצר SCT-01
The SCT-01 is developed for laboratories and production environments requiring repeatable compression measurements for paper and board materials.
התכונות העיקריות כוללות:
| מאפיין | תיאור |
|---|---|
| שיטת הבדיקה | בדיקת דחיסה בטווח קצר |
| הוראות הבחינה | כיוון האריגה וכיוון הרוחב |
| רוחב הדגימה | 15 מ"מ |
| מרחק הדחיסה | 0.3–2 מ"מ |
| טווח הבדיקה | 1–500 N או לפי דרישה |
| החלטה | 0.01 N |
| מהירות הבדיקה | 3 ± 0.1 מ"מ/דקה |
| מערכת ההפעלה | בקר PLC עם ממשק HMI |
| שיטת ההידוק | הידוק דגימות באמצעות מערכת פנאומטית |
| יחידות נתונים | N, kgf, lbf |
| תקשורת | ממשק RS-232 אופציונלי |
The PLC-controlled system provides stable operation, while the HMI interface allows operators to easily configure test parameters and review results.
Advantages of Using SCT-01 for Paper and Board Testing
Accurate Compression Force Measurement
The SCT-01 provides high-resolution force measurement with a resolution of 0.01 N, allowing laboratories to detect small differences between paper grades and production batches.
Stable Sample Holding
Pneumatic clamping ensures consistent holding pressure and reduces operator influence during testing. Proper alignment between clamps improves repeatability.
Flexible Testing Settings
Adjustable test parameters allow users to evaluate different paper and board materials according to their specific quality requirements.
ניהול נתונים נוח
The optional RS-232 communication function enables connection with external software systems for data collection and laboratory management.
Improved Quality Control
Manufacturers can use test results to monitor incoming raw materials, optimize production processes, and verify finished product performance.
יישומים של בדיקות דחיסה במפתח קצר
Short span compression strength testing of paper and board is widely applied in industries that depend on reliable paper-based packaging materials.
בין היישומים הנפוצים ניתן למנות:
ייצור אריזות קרטון גלי
Containerboard producers use compression data to evaluate paper performance before converting it into corrugated packaging structures.
ייצור קרטון
Paper mills use compression testing to compare different grades and monitor manufacturing consistency.
מחקר ופיתוח בתחום האריזה
R&D engineers use short span compression results to develop lightweight packaging solutions while maintaining strength requirements.
מעבדות לבדיקת איכות
Independent laboratories and inspection organizations use standardized compression testing methods for material evaluation and supplier verification.
Materials Suitable for TAPPI T826 Testing
The SCT-01 is suitable for testing various paper and board materials, including:
- קרטון לאריזת מכולות
- נייר אריזה
- קרטון
- Box manufacturing materials
- רכיבי אריזה מגולגלים
It is particularly suitable for materials within the recommended grammage range of:
100 גרם למ"ר עד 400 גרם למ"ר
תקנים רלוונטיים לבדיקות דחיסה במפתחים קצרים
The SCT-01 Short Span Compression Tester supports testing methods related to:
| סטנדרטי | תיאור |
|---|---|
| TAPPI T826 | Short span compression strength testing of paper and board |
| ISO 9895 | Compression testing method for paper and board materials |
| DIN 54518 | Compression testing requirements for paper products |
| BS 7325 | שיטת בדיקת דחיסה של נייר וקרטון |
| GB/T 2679.10 | Paper and board compression strength testing |
| QB/T 2386 | Paper and packaging material testing requirements |
These standards provide recognized approaches for evaluating paper and board compression properties across different markets.
Choosing the Right Short Span Compression Tester
When selecting equipment for short span compressive strength measurement, laboratories should consider:
- Testing accuracy and resolution
- Clamp design and alignment
- Compression control stability
- Software and data management capability
- Compatibility with required standards
- Manufacturer support and customization options
The SCT-01 provides a practical solution for companies requiring reliable compression data for packaging development, production monitoring, and laboratory quality assurance.
Cell Instruments also provides customized fixtures and testing solutions for specialized material evaluation requirements, helping customers adapt testing systems to unique applications.
